MOEN

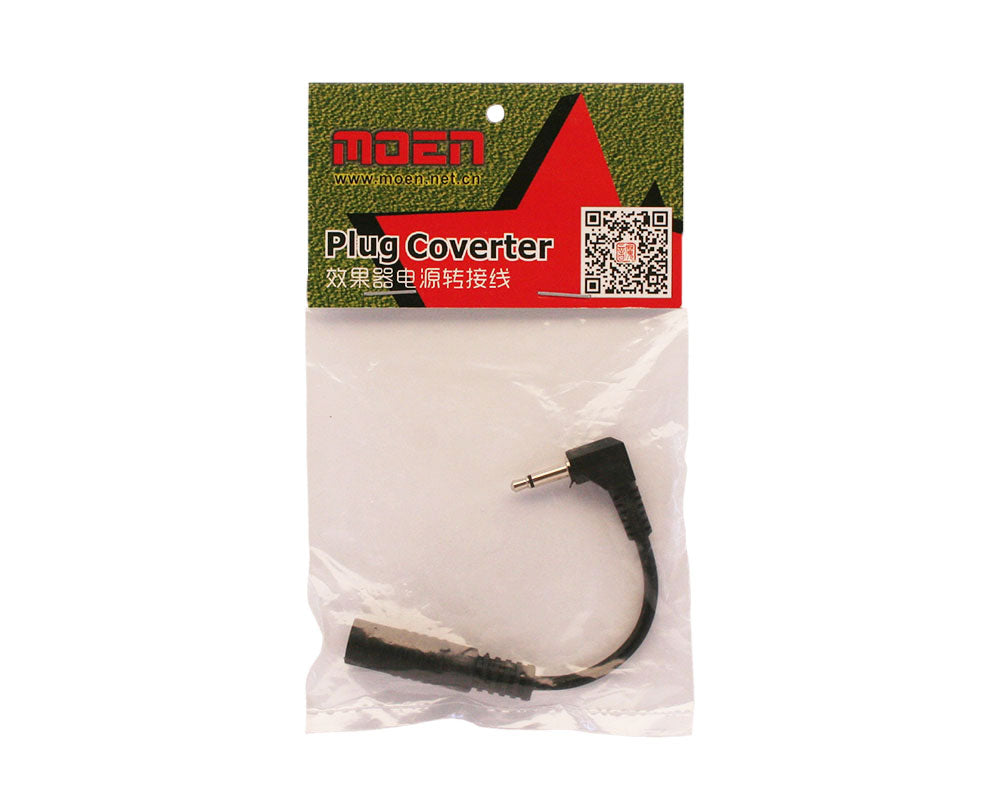

The MOEN 3.5mm converter allows a standard effect pedal 9v AC adaptor / power supply (2.1mm ID, 5.5mm OD plug, negative center) to power devices accepting a 3.5mm / 1/8" with a positive tip.

3.5mm plugs are most commonly found on Electro-Harmonix old DOD and older guitar effects.

Specifications

• Converts a 2.1mm / 5.5mm plug into a 3.5mm with a positive tip
• Suitable for use with Daisy Chain

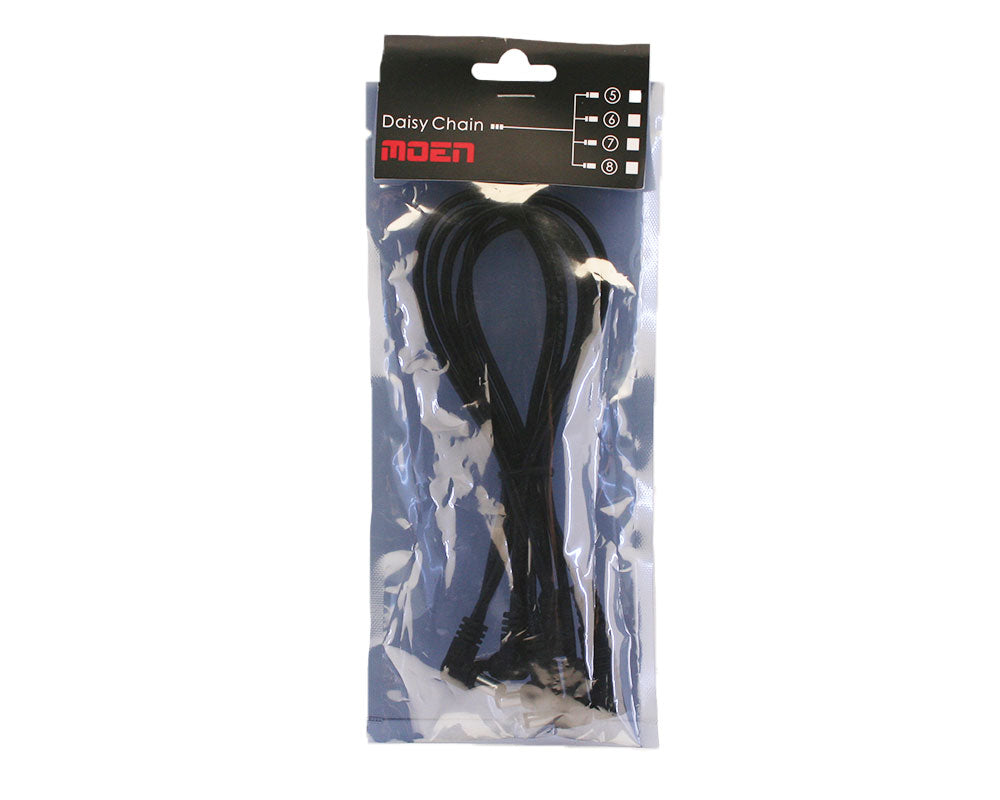

The MOEN 5 plug daisy chain plugs into the end of the cable from a 9v ac adapter (DC current), you can then power up to 5 pedals at once from the one ac adapter.

Featuring right angle plugs and a large 30cm spread between each connector, this MOEN daisy chain makes setting up and laying out your pedal board a whole lot easier.

Specifications

• Connector Pins - 2.1mm ID, 5.5mm OD
• Suitable for many brands of guitar effects pedals
• Right angle plugs
• Length: 150cm (30cm between each plug)

MOEN 8 Plug Daisy Chain Power Cable with Angled Plugs The MOEN 8 plug daisy chain plugs into the end of the cable from a 9v AC adapter (DC current), you can then power up to 8 pedals at once from the one ac adapter.

Featuring straight plugs and a 15cm spread between each connector, this MOEN daisy chain makes setting up and laying out your pedal board a whole lot easier.

Suits Many Brands of Effect Pedals This daisy chain will fit pedals including models by Boss, MOEN, Daphon, Danelectro, Ibanez, Fulltone, Marshall, Rocktek, Morley, Dunlop, Guyatone, Crispy Cream, Behringer, Daphon, Aria, GLX, etc.

Specifications

• Connector Pins - 2.1mm ID, 5.5mm OD
• Suitable for many brands of guitar effects pedals
• Right angle plugs
• Length: 120cm (15cm between each plug)

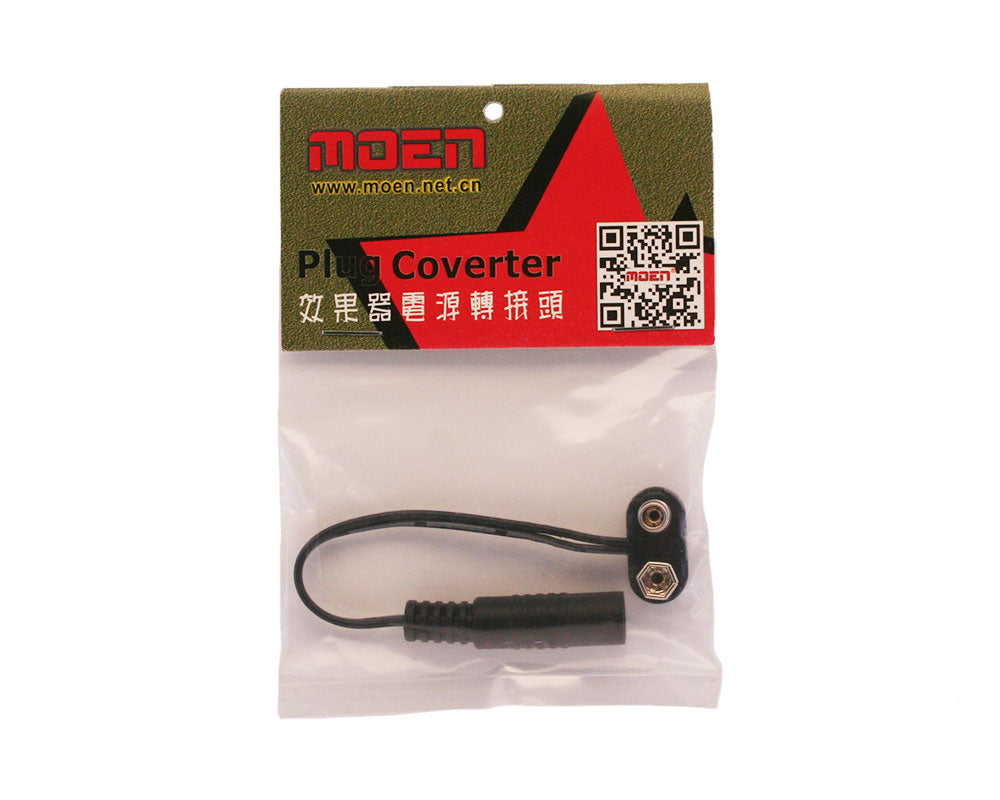

The MOEN battery clip converter allows a standard effect pedal 9v AC adaptor / power supply (2.1mm ID, 5.5mm OD plug, negative center) to power anything that runs on a 9V battery.

Useful for powering pedals with odd power plugs that also can run of battery, eliminating the need for an extra AC adapter.

Specifications

• Standard 9v Battery Power Cable Clip
• Suitable for use with Daisy Chains

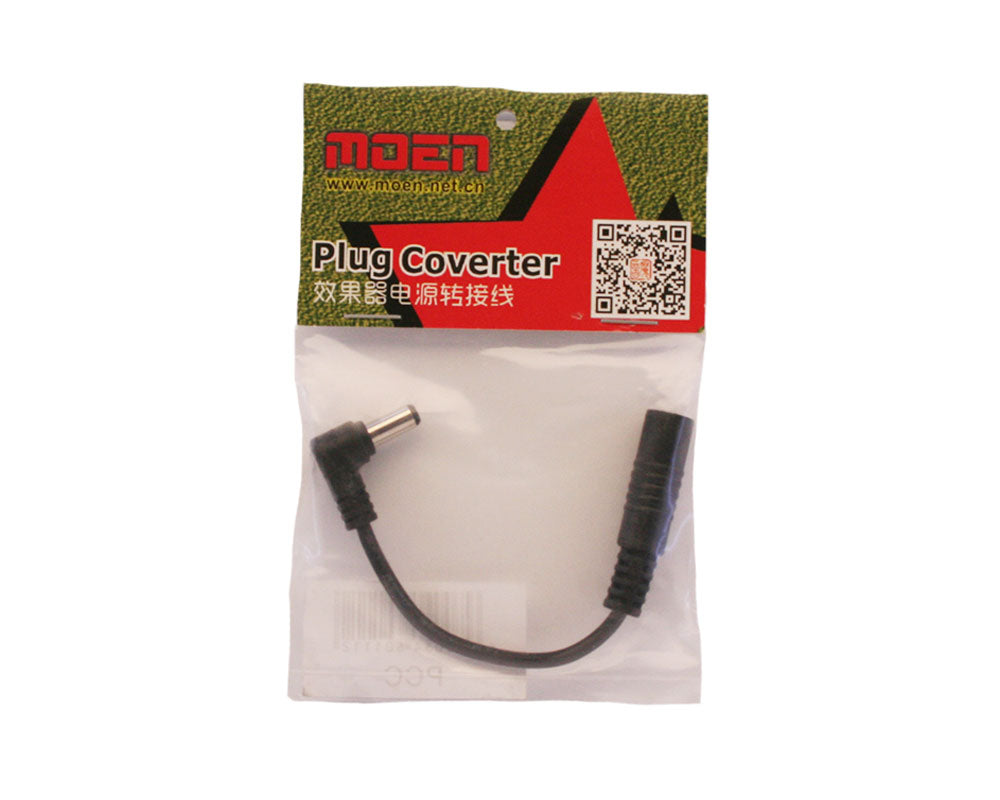

The MOEN polarity converter allows a standard effect pedal 9v AC adapter adaptor (2.1mm ID, 5.5mm OD plug, negative center) to power pedals requiring a positive center plug.

Useful for odd pedals requiring a positive center plug, eliminating the need for an extra AC adapter.

Also able to power Yamaha keyboards, samplers and drum machines.

Specifications

• Converts polarity either way (negative/positive or positive/negative)
• Suitable for use with Daisy Chains

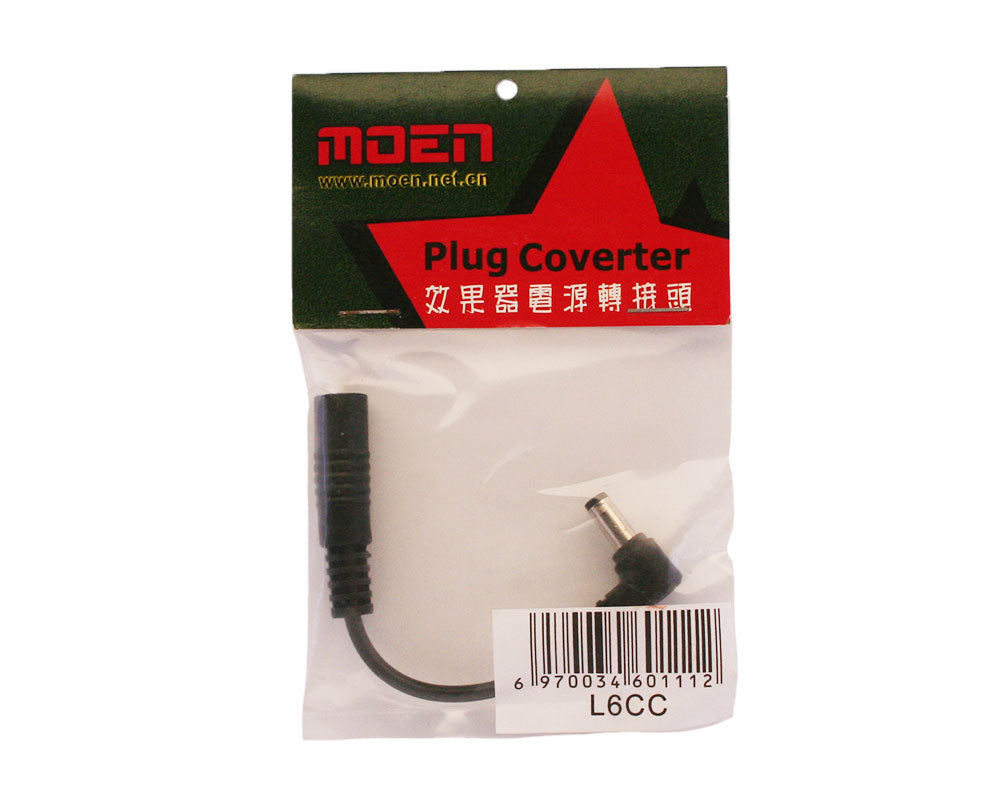

The MOEN 'Line 6' style plug converter allows a common 2.1mm x 5.5mm negative centre plug to be converted to suit various Line 6 devices.

This is commonly used with power supplies which have the correct specifications to power Line 6 products, but have the wrong sized plug.

Specifications

• Converts a 2.1mm x 5.5mm plug into proprietary 2.5mm x 5.5mm Line 6 plug
• Fits Line 6 modelling pedals, Digitech RP100, and other devices
• Suitable for use with Daisy Chain

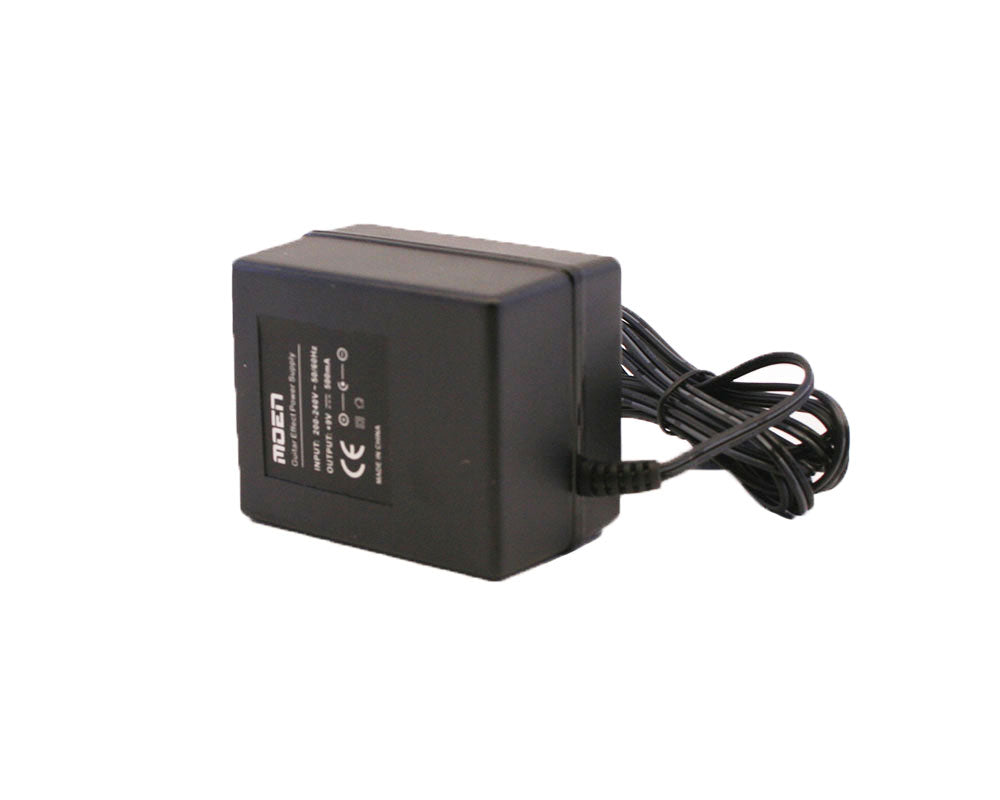

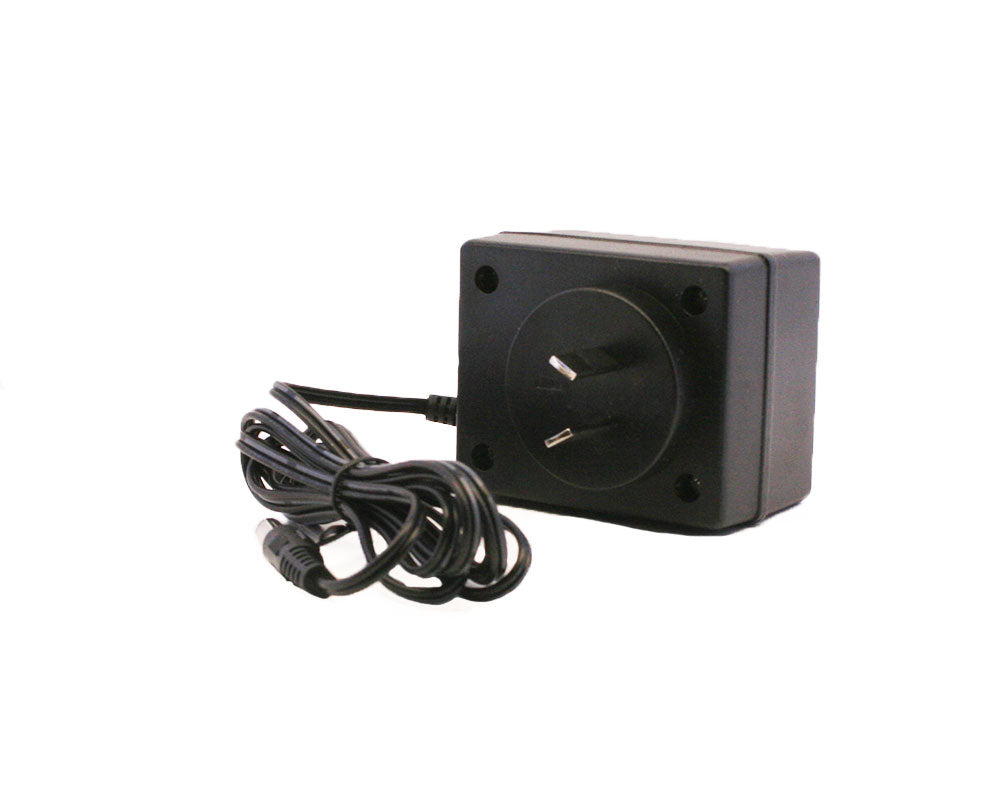

The Australian MOEN regulated 9V AC adaptor/power supply is built for the MOEN range of guitar effect pedals, though can also be used with many other guitar pedals on the market.

With 600mA of current this power supply can power many pedals at the one time with the use of a daisy chain cable.

The MO-PA is a linear design and so there is far less chance of introducing noise when compared to a switch mode design.
