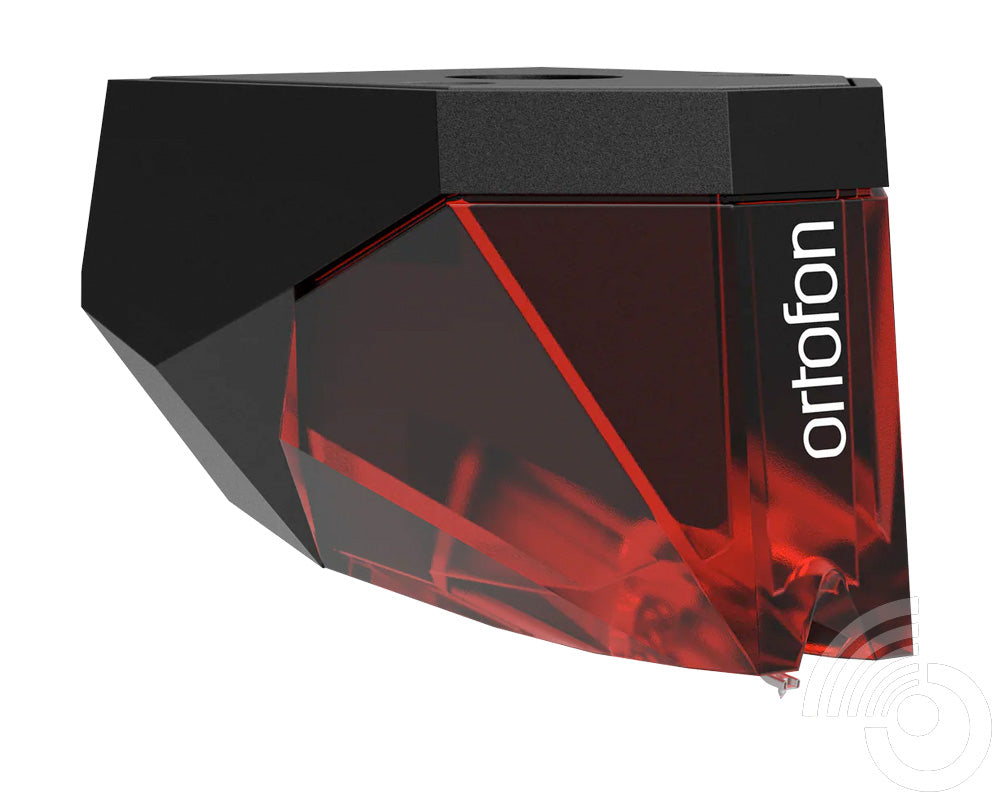

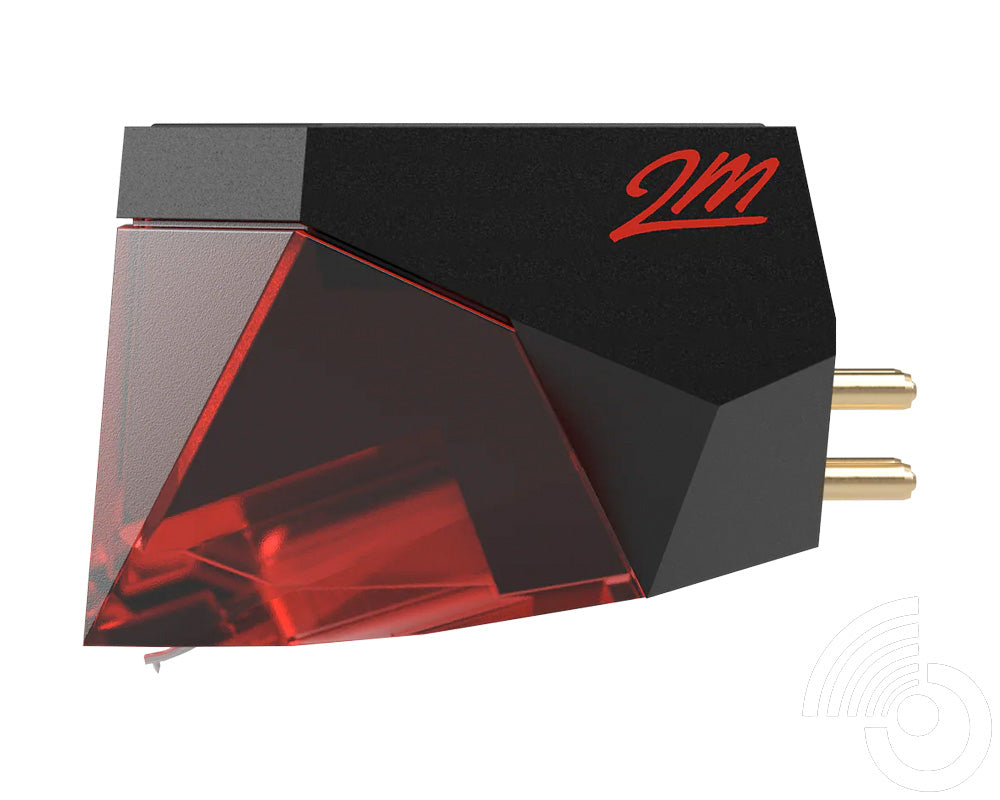

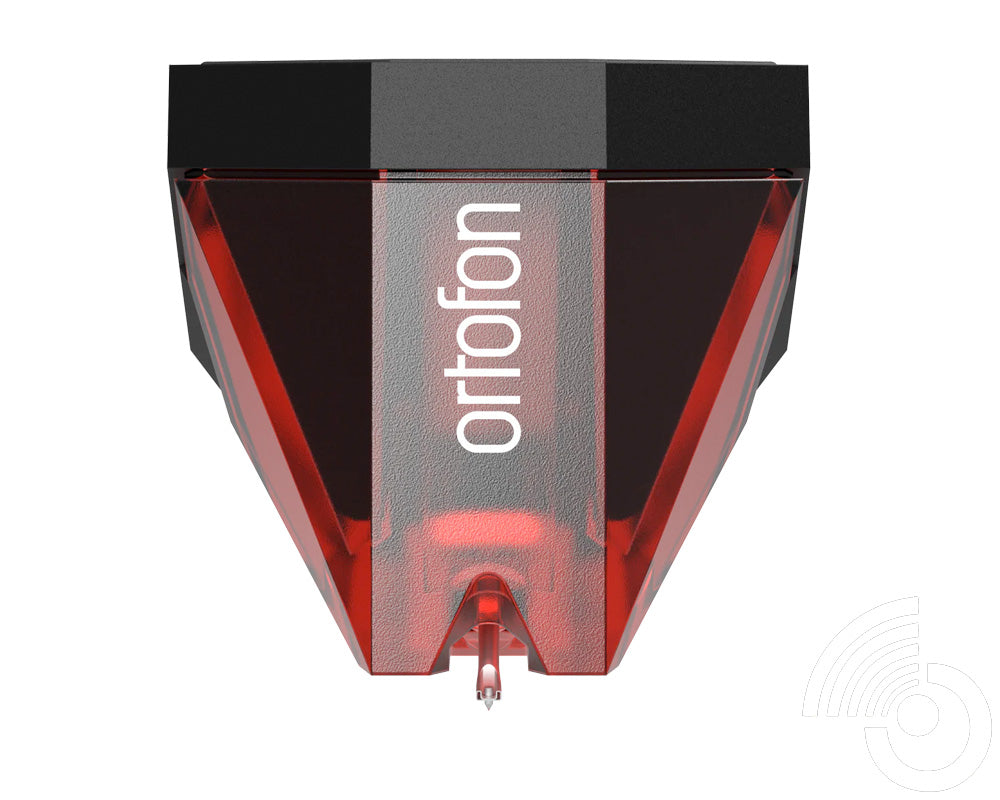

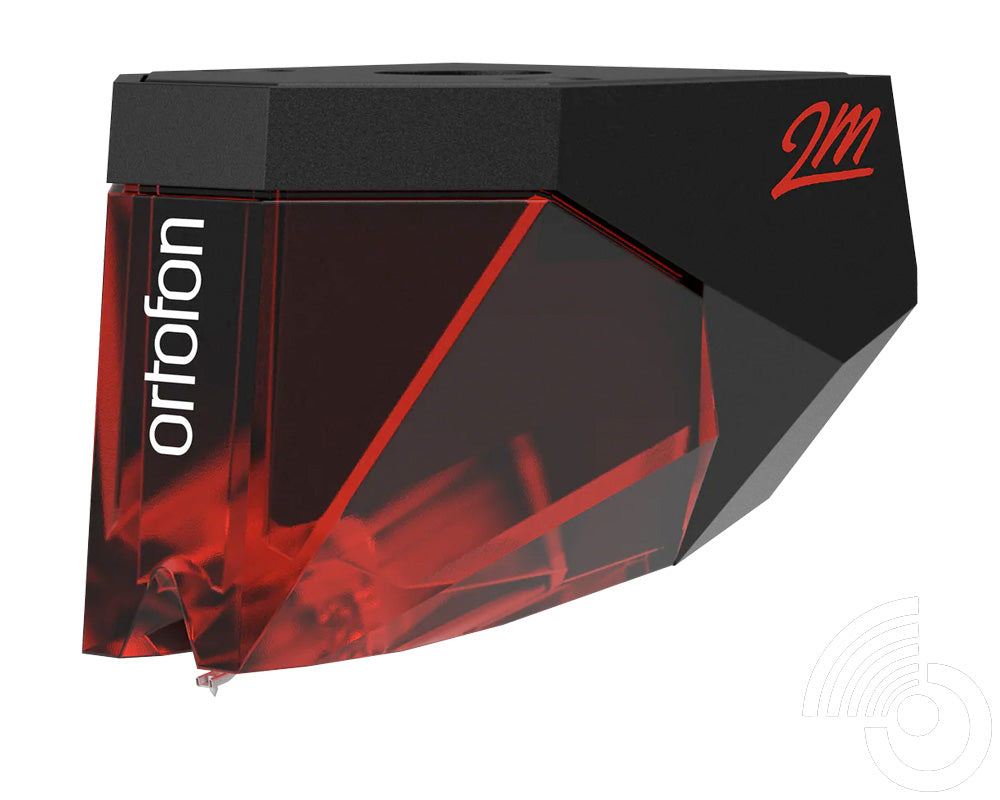

Ortofon 2M Red Cartridge

The 2M Red is an all-purpose cartridge that delivers an open, dynamic sound with a slight touch of warmth.

The 2M Series boast new features including:

• An improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.

•  A tipped Elliptical diamond and split pole pins with a copper wire.
•  The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
• The design has been optimized for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

 2M Red accessories included the package:

    1 x Stylus brush
    1 x Screwdriver
    2 x Screw M2,5 x 5
    2 x Screw M2,5 x 7

Specifications

• Output voltage at 1000 Hz, 5cm/sec.  -  5.5 mV
• Channel balance at 1 kHz   -  1.5 dB
• Channel separation at 1 kHz  -  22 dB
• Channel separation at 15 kHz  -  15 dB
• Frequency range at - 3dB  -  20-22.000 Hz
• Frequency response  -  20-20.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force  -  70 µm
• Compliance, dynamic, lateral  -  20 µm/mN
• Stylus type  -  Elliptical
• Stylus tip radius  -  r/R 8/18 µm
• Tracking force range  -  1.6-2.0 g (16-20 mN)
• Tracking force, recommended  - 1.8 g (18 mN)
• Tracking angle  -  20°
• Internal impedance, DC resistance  -  1.3 kOhm
• Internal inductance  -  700 mH
• Recommended load resistance  -  47 kOhm
• Recommended load capacitance  -  150-300 pF
