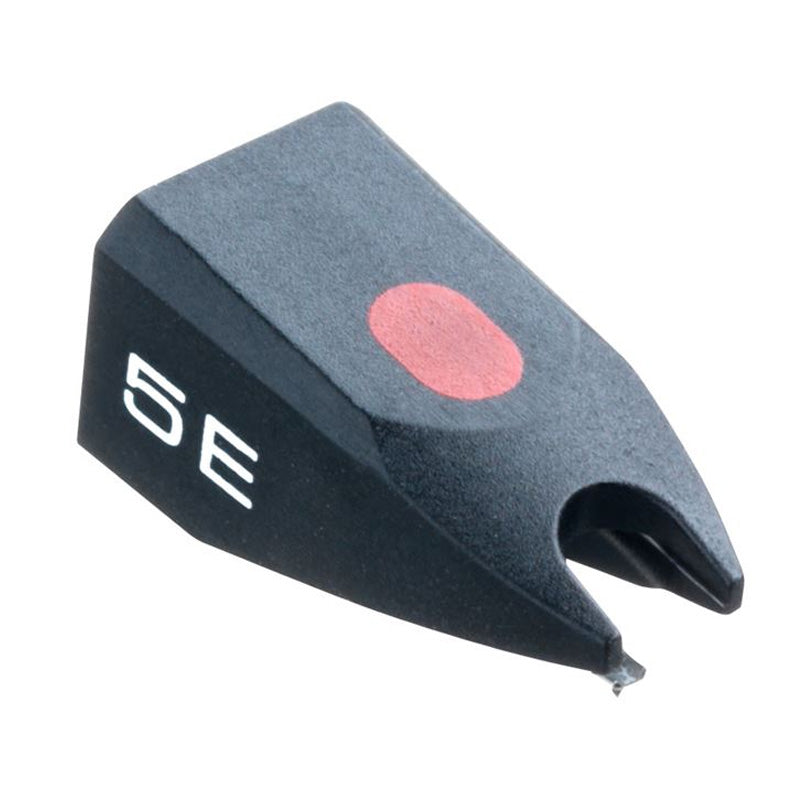

Ortofon Stylus 5E
Ortofon Stylus 5E

Ortofon Stylus 5E

Regular price$90.00
/
Tax included.

Stylus type - Elliptical.

An OM cartridge from Ortofon makes it possible to upgrade the performance of an entire music system very easily by upgrading the stylus.

Ortofon offer a wide range of replacement styli for OM cartridges.

Specifications

  • Frequency range - 20-25.000 Hz
  • Frequency response - 20-25.000 Hz
  • Tracking ability at 315Hz at recommended tracking force *) - 65 µm
  • Compliance, dynamic, lateral - 20 µm/mN
  • Stylus type - Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • *) Typical value
  • Equivalent stylus tip mass - 0.5 mg
  • Tracking force range - 1.5-2.0 g (15-20 mN)
  • Tracking force, recommended - 1.75 g (17.5 mN)
  • Tracking angle - 20°
  • Stylus colour - Black
  • Recommended for OM 5E, Super OM 5, OMP 5E, OMB 5E, OMT 5E
