Audio Technica AT-VM95SH Cartridge
Audio Technica AT-VM95SH Cartridge
Audio Technica AT-VM95SH Cartridge

Audio Technica AT-VM95SH Cartridge

Regular price $340.00
/
Tax included.

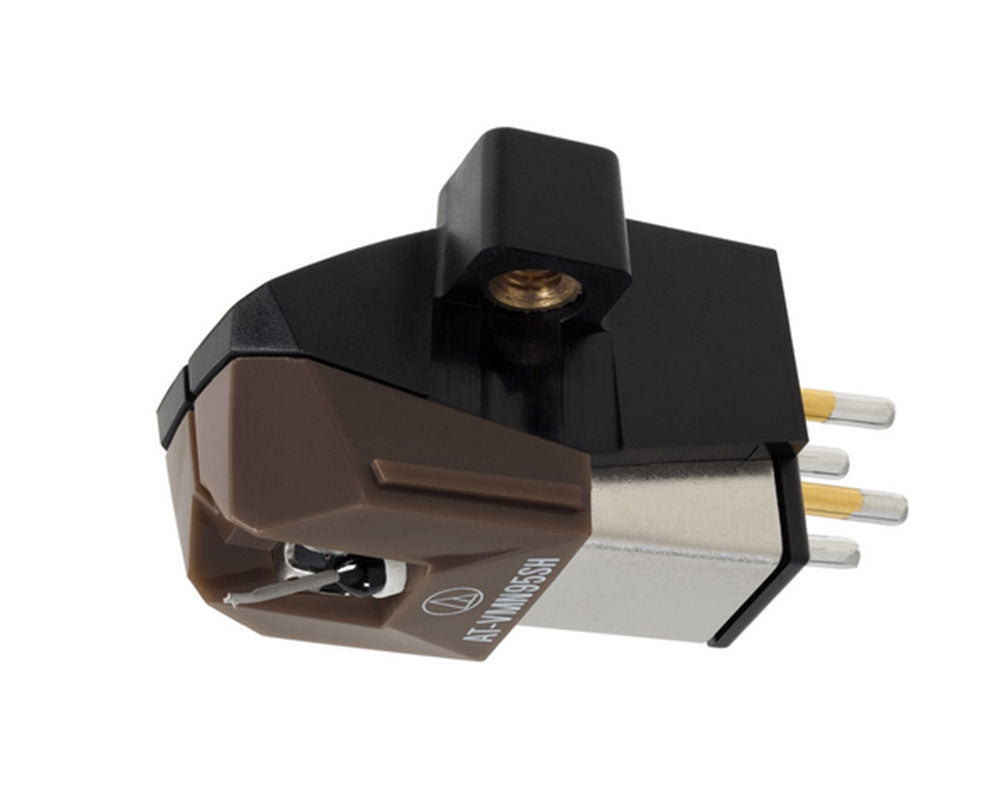

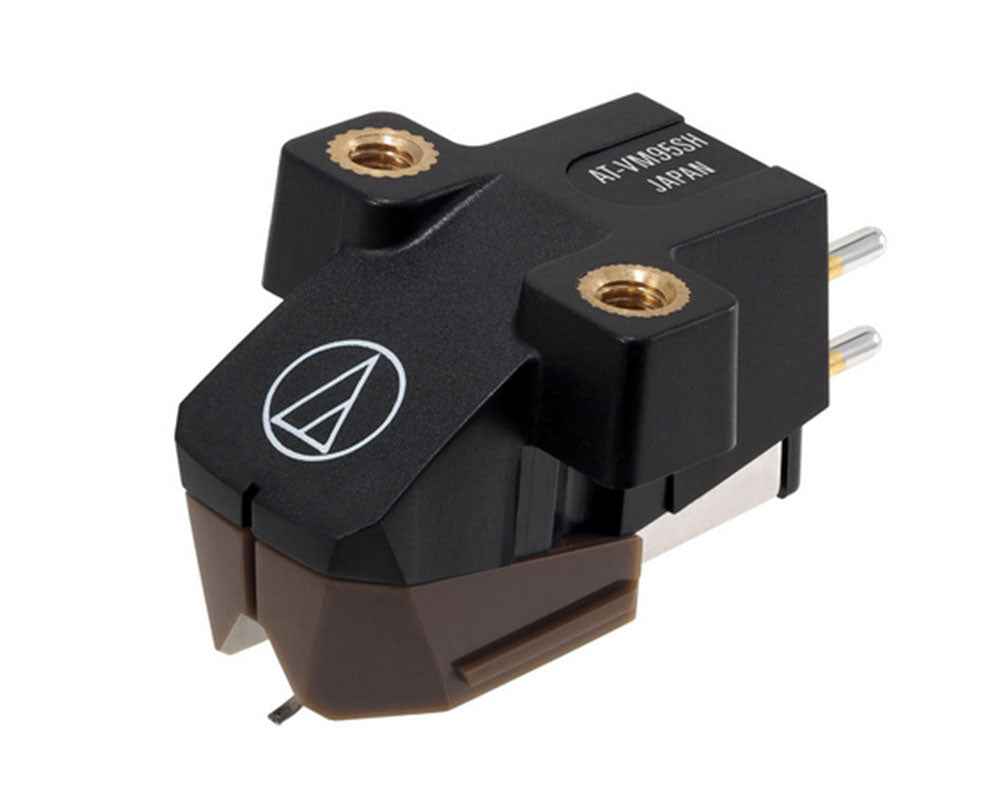

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables.

The cartridge offers excellent channel separation and low distortion for outstanding tonal quality.

The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required.

And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

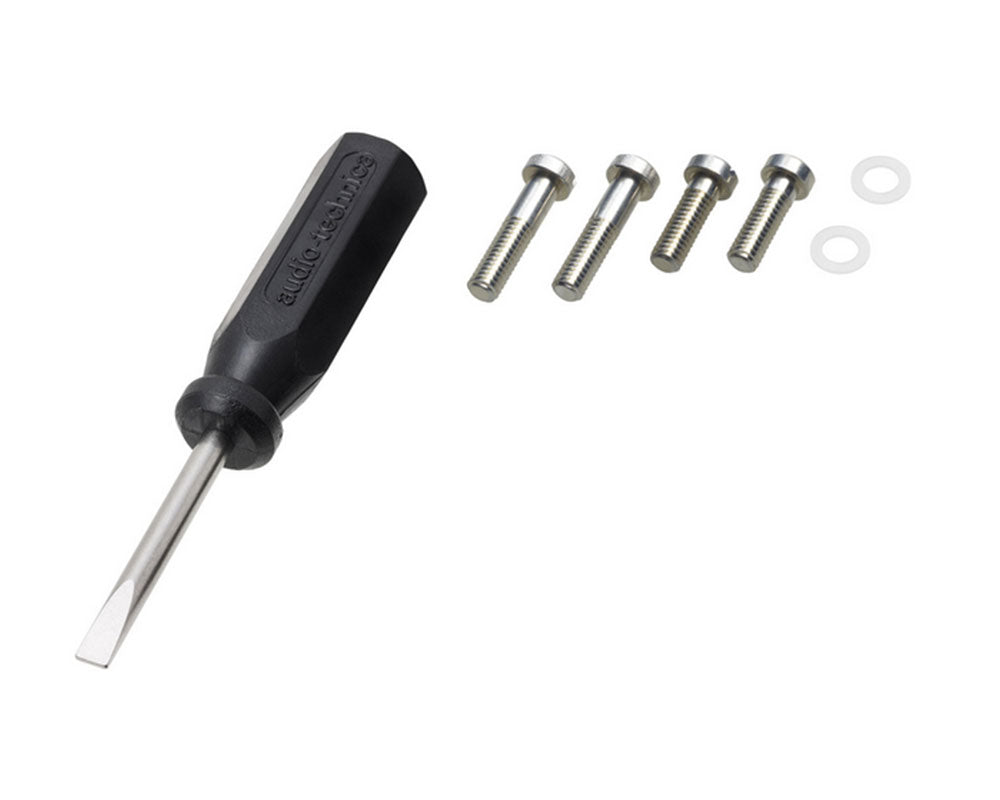

Accessories Included: Two 11mm installation screws, two 8mm installation screws, two washers, nonmagnetic screwdriver

Specifications

  • Frequency Response 20-25,000 Hz
  • Channel Separation 23 (dB at 1 kHz)
  • Vertical Tracking Force 1.8-2.2g (2.0g standard)
  • Stylus Construction Nude square shank
  • Recommended Load Impedance 47,000 ohms
  • Output 3.5 mV (1 kHz, 5 cm/sec.)
  • Channel Balance 1.5 dB (1 kHz)
  • Stylus Shape 2.7 x 0.26 mil Shibata
  • Cantilever Aluminium pipe
  • Mount Half-inch
  • Replacement Stylus AT-VMN95SH
  • Coil Impedance 3.3 k ohms (1 kHz)
  • DC Resistance 485 ohms
  • Load Capacitance 100 to 200 pF
  • Coil Inductance 550 mH (1 kHz)
  • Vertical Tracking Angle 23°
  • Dimensions 17.2mm H × 18.9mm W × 28.3mm D
  • Weight 6.1g
