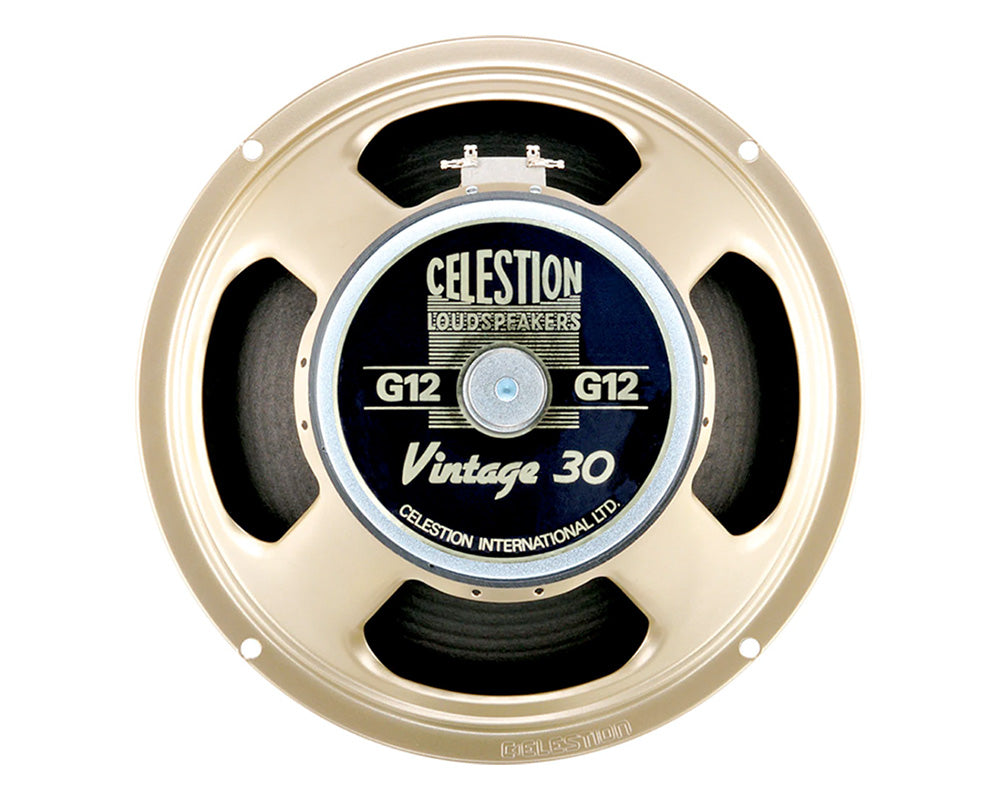

Celestion G12 Vintage 30 12" 16Ω Guitar Speaker
Celestion G12 Vintage 30 12" 16Ω Guitar Speaker

Celestion G12 Vintage 30 12" 16Ω Guitar Speaker

Regular price$157.04
/
Tax included.

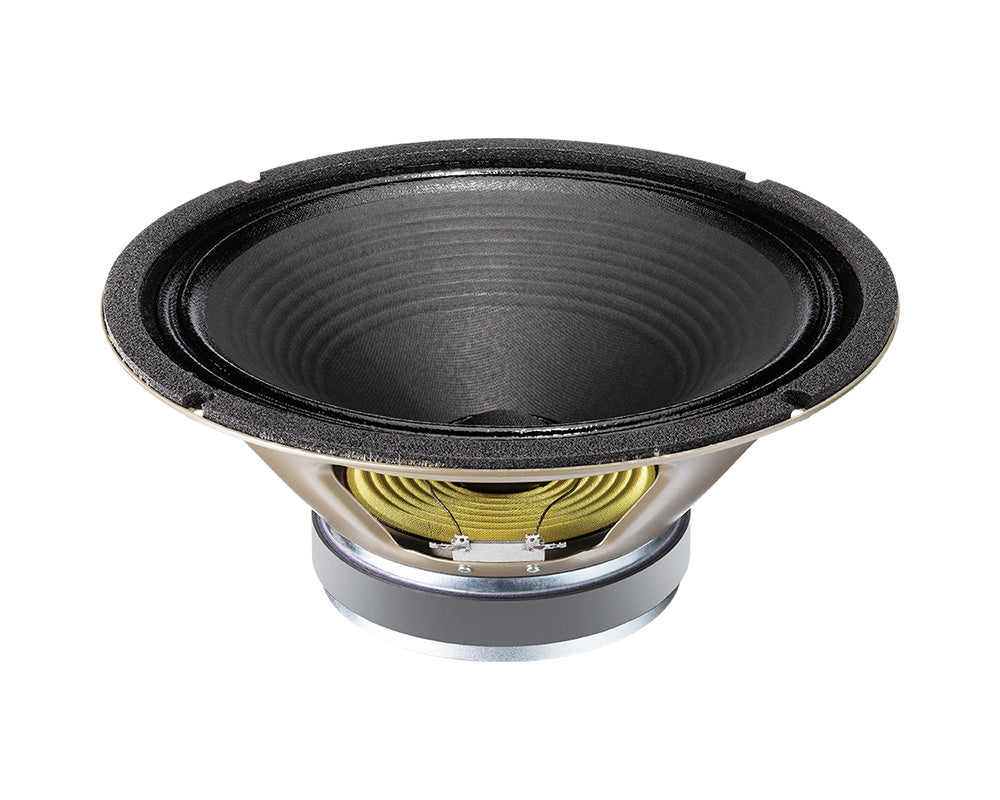

Celestion Vintage 30 12" 16Ω Guitar Speaker T3904

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly ‘hot-rodded’ amplifiers we set out to develop a modern guitar speaker capable of handling much more power and overdrive. To achieve this we coupled our ‘H’ magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.

Our most revealing speaker the Vintage 30 features enormously detailed and complex overtones a warm low-end a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps or in quartets for a wonderfully intricate vintage 3D crunch the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash Steve Stevens and Peter Frampton.

General Specifications

  • Nominal diameter 12", 305mm
  • Power rating 60Wrms
  • Nominal impedance Available 8Ω or 16Ω
  • Sensitivity 100dB
  • Chassis type Pressed steel
  • Voice coil diameter 1.75", 44.5mm
  • Voice coil material Round copper
  • Magnet type Ceramic
  • Magnet weight 50oz, 1.42kg
  • Frequency range 70-5000Hz
  • Resonance frequency, Fs 75Hz
  • DC resistance, Re Available 7.3Ω or 12.9Ω

Mounting Information

  • Cut-out diameter 11.1", 283mm
  • Diameter 12.2", 309mm
  • Magnet structure diameter 6.1", 156mm
  • Mounting slot dimensions 0.31", 7.9mm Ø
  • Mounting slot PCD 11.7", 297mm
  • Number of mounting slots 4
  • Overall depth 5.3", 135mm
  • Unit weight 10.4lb, 4.7kg
