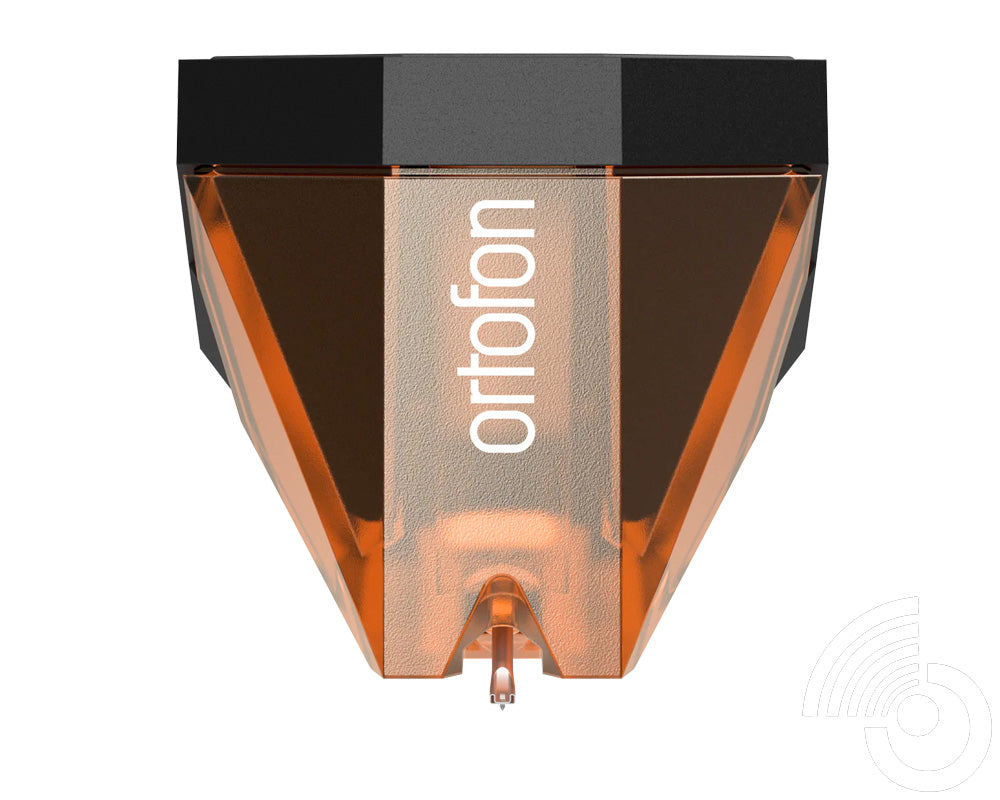

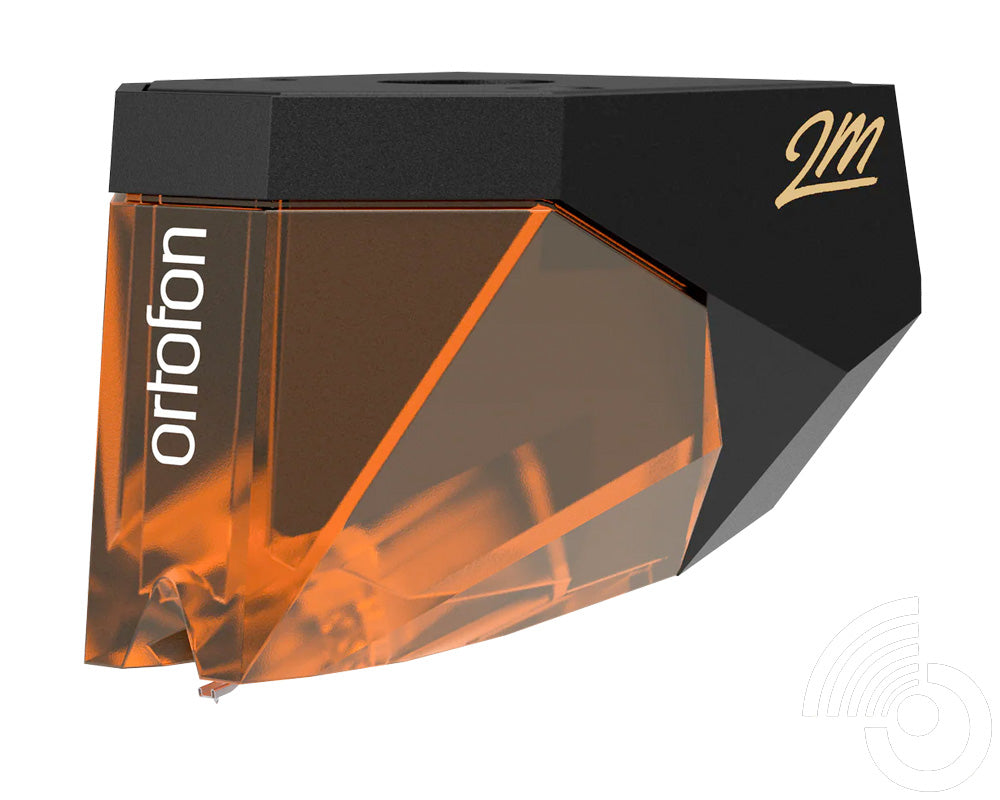

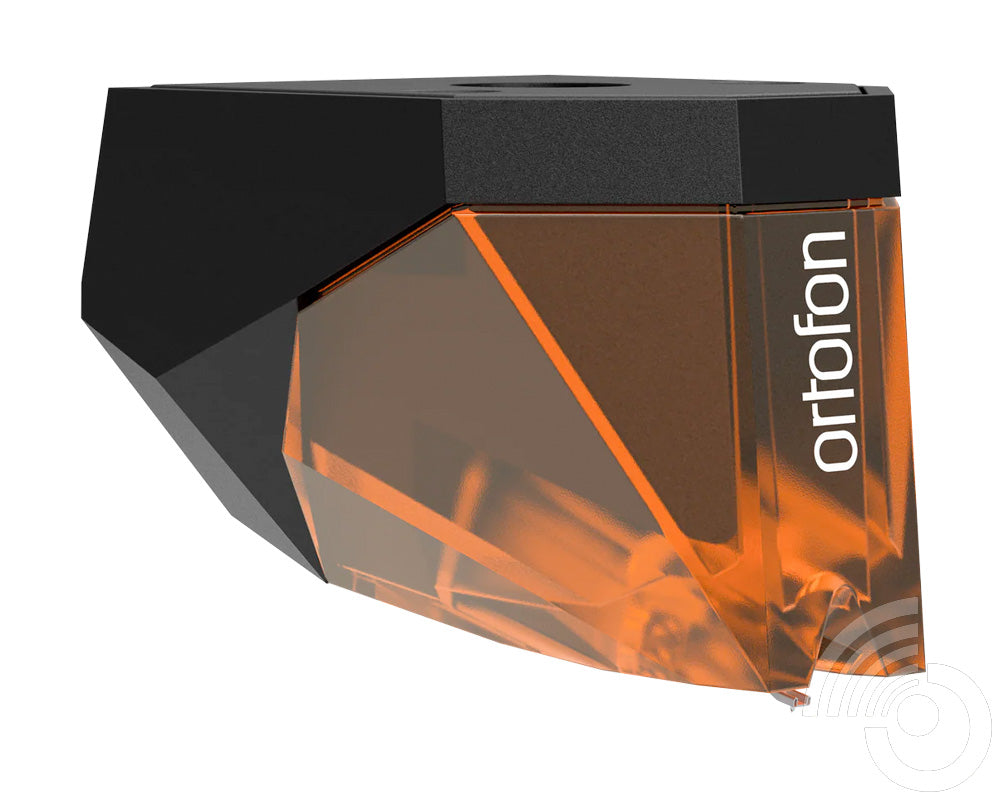

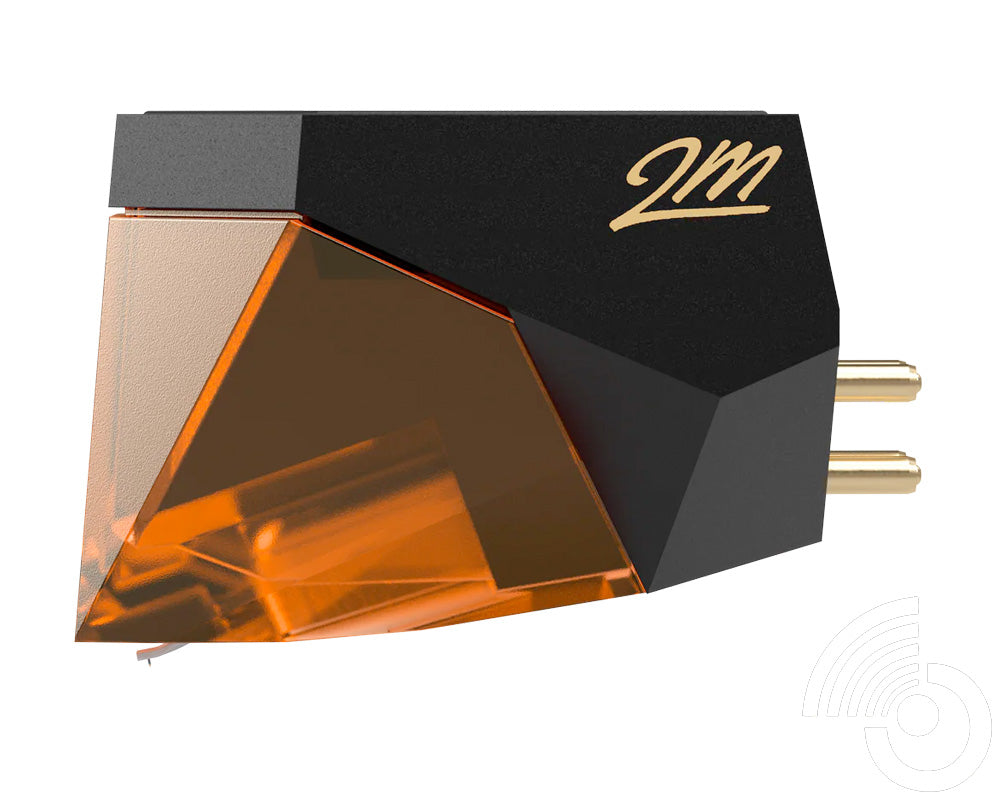

Ortofon 2M Bronze Cartridge
Ortofon 2M Bronze Cartridge
Ortofon 2M Bronze Cartridge
Ortofon 2M Bronze Cartridge

Ortofon 2M Bronze Cartridge

Regular price$699.00
/
Tax included.

The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time, and you get to fall in love with the songs all over again. That is what hi-fi means to us, and that is what you get with the 2M Bronze.

The 2M Bronze features a Nude Fine Line diamond particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information.

Specifications:

  • Channel balance at 1 kHz - 1 dB
  • Output voltage at 1 kHz, 5cm/sec - 5 mV
  • Channel separation at 1 kHz - 26 dB
  • Frequency response 20 Hz - 20 kHz - 2 / - 0 dB
  • Tracking ability at 315 Hz - 80 µm
  • Compliance, dynamic, lateral - 22 µm/mN
  • Cantilever material - Aluminium
  • Stylus type - Nude Fine Line
  • Stylus tip radius - r/R 8/40 µm
  • Tracking force range - 1.4-1.7 g (14-17 mN)
  • Tracking force, recommended - 1.5 g (15 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1.2 kOhm
  • Cartridge colour - Black/Bronze
  • Cartridge weight - 7.2 g
  • Premounted cartridge weight - 16.7 g
  • Recommended load resistance
     - 47 kOhm
  • Internal inductance - 630 mH
  • Recommended load capacitance - 150-300 pF
